Here are the simple steps to release an emergency stop button on an EV charging station, typically needed when the button is accidentally pushed or twisted.
Different manufacturers have varying specifications and methods for releasing them. Please pay attention to the steps provided here.

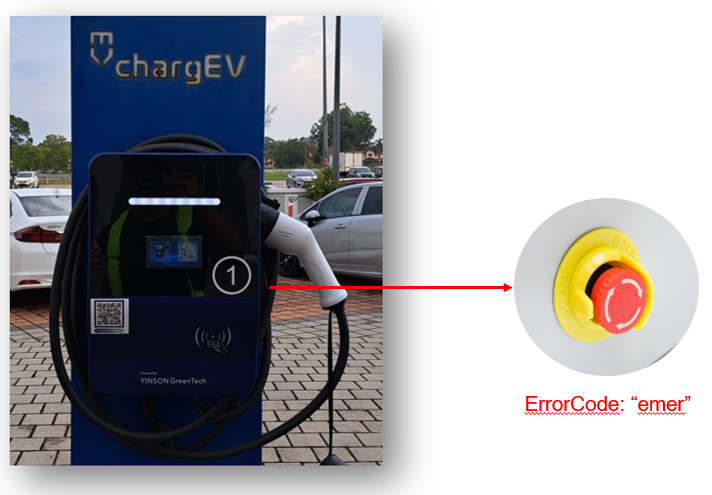

- DFZT - Error Code: “emer”
How to release:
1. Locate the stop button.
2. Twist the button in the direction of the arrow(often turning the button clockwise)
3. The stop button will then be released.

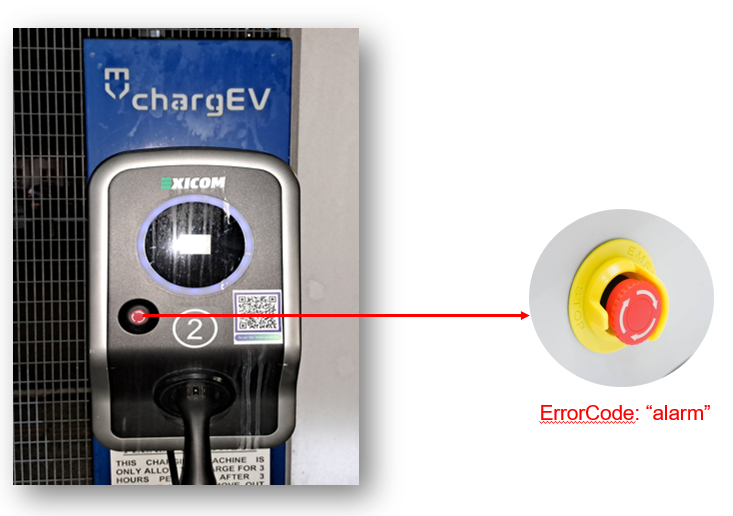

- EXICOM (AC) - Error Code: “alarm”
How to release:
1. Locate the stop button.
2. Twist the button in the direction of the arrow(often turning the button clockwise)
3. The stop button will then be released.

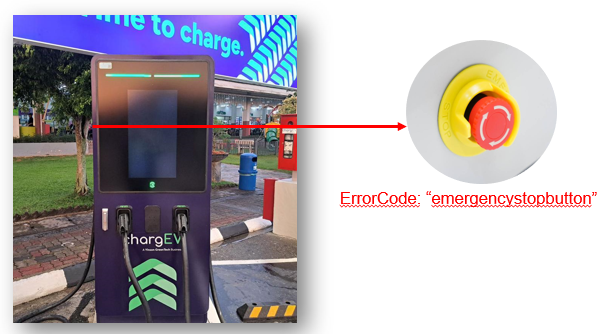

- AUTEL (DC) - Error Code: “emergencystopbutton”
How to release:
1. Locate the stop button.
2. Twist the button in the direction of the arrow(often turning the button clockwise)
3. The stop button will then be released.

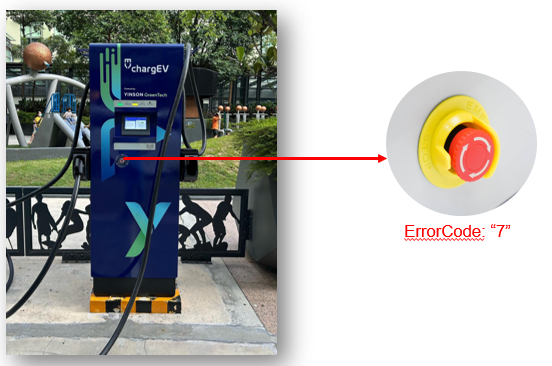

- EXICOM (DC) - Error Code: “7”
How to release:
1. Locate the stop button.
2. Twist the button in the direction of the arrow(often turning the button clockwise)
3. The stop button will then be released.

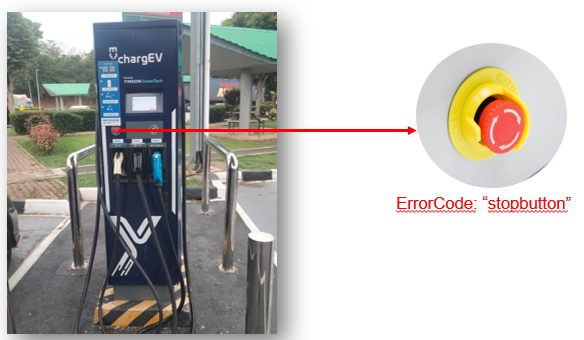

- ABB (DC) - Error Code: “stopbutton”
How to release:
1. Locate the stop button.
2. Twist the button in the direction of the arrow(often turning the button clockwise)
3. The stop button will then be released.

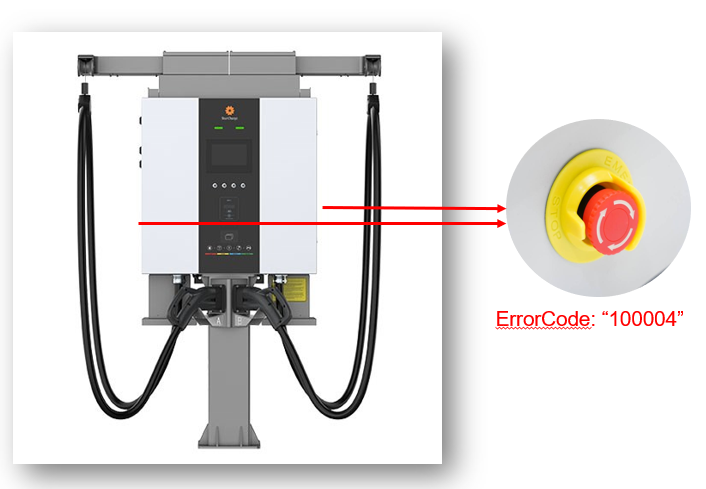

- STARCHARGE ANTHENA (DC) - Error Code: “100004”
How to release:
1. Locate the stop button.
2. Twist the button in the direction of the arrow(often turning the button clockwise)
3. The stop button will then be released.

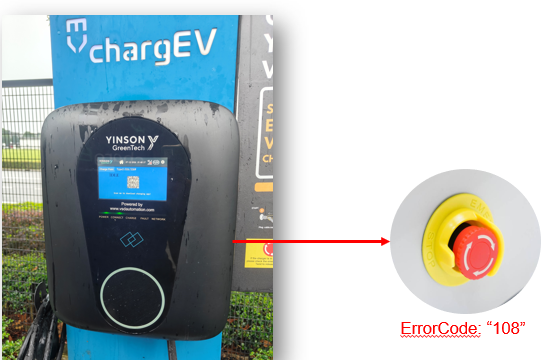

- STARCHARGE ANTHENA (DC) - ErrorCode: “108”
How to release:
1. Locate the stop button.
2. Twist the button in the direction of the arrow(often turning the button clockwise)
3. The stop button will then be released.

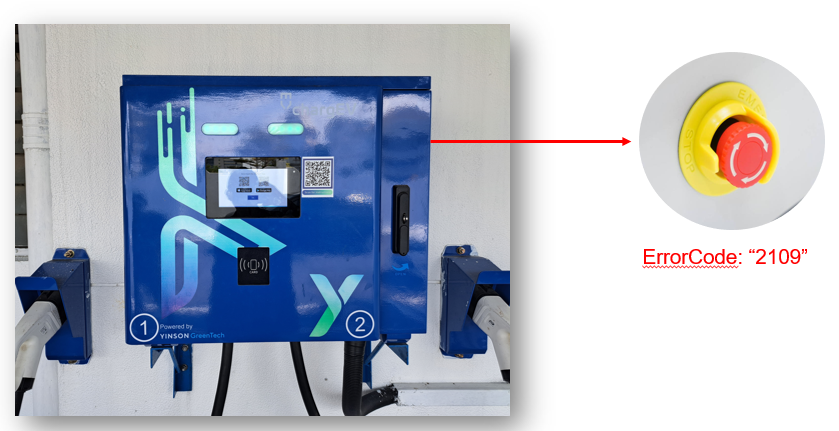

- CORNERSTONE (DC) - Error Code: “2109”
How to release:
1. Locate the stop button.
2. Twist the button in the direction of the arrow(often turning the button clockwise)
3. The stop button will then be released.
- Others
How to release:
1. At the charger, locate the emergency stop button. Typically, it will have warning sign
2. Twist the button in the direction of the arrow(often turning the button clockwise)
3. The stop button will then be released.
